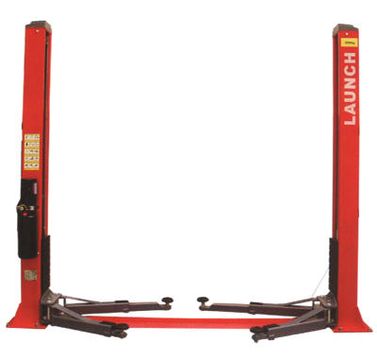

Launch  car lifts

Rated load:    3500kg     4000kg

Lifting height:         1850mm

Initial height:          110mm

Lifting time:            ≤50s

Lowering time:         ≥20s≤40s

Passing width:          2486mm

Overall width:          3370mm

Overall height:         2860mm

Motor power:           2.2kw

Motor voltage:         3 phase/380v or single phase/220v

Working noise:         ≤75dB(A)

Working oil pressure:   16M Pa

Features:

1. Bilateral manual safety unlocking system.

2. The cable and oil pipe are fully concealed; with decent and elegant appearance.

3. Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

4. Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

5. 24V low voltage control box (IP54 level) ensures operator’s safety.

6. 24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.

7. Door rubber pad protects car door from being damaged in collision.

8. More lifting pads with different height meets the requirements for light lorries and SUVs.

9. Passed 115% dynamic loading test and 150% static loading test.

10. CE certificated.
